Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder
HomeStore

Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder

Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder

Welding effects demonstrated with different aluminum thicknesses


ARCCAPTAIN TIG200P AC/DC Pulse Welder – Precision Meets Power

Professional-Grade Versatility: Weld aluminum, steel, stainless steel, copper, and more with ease. The TIG200P supports AC/DC TIG (with adjustable square/triangle/pulse waveforms) and Stick welding up to 160A, perfect for delicate projects or heavy-duty repairs.

  • Start welding in a flash: arc ignition speeds up to 5x faster (40ms vs. 200ms) with a 99.99% success rate
  • Reduced tungsten damage and ultra: stable arc for cleaner, stronger welds
  • Digital control ensures whisper: quiet operation and consistent performance

Smart Waveforms for Flawless Results

  • Pulse/Square/Triangle modes prevent burn-through, minimize warping, and create pro-quality bead finishes
  • Square wave AC crushes aluminum oxide for cleaner welds and better arc control

Built for Real-World Convenience

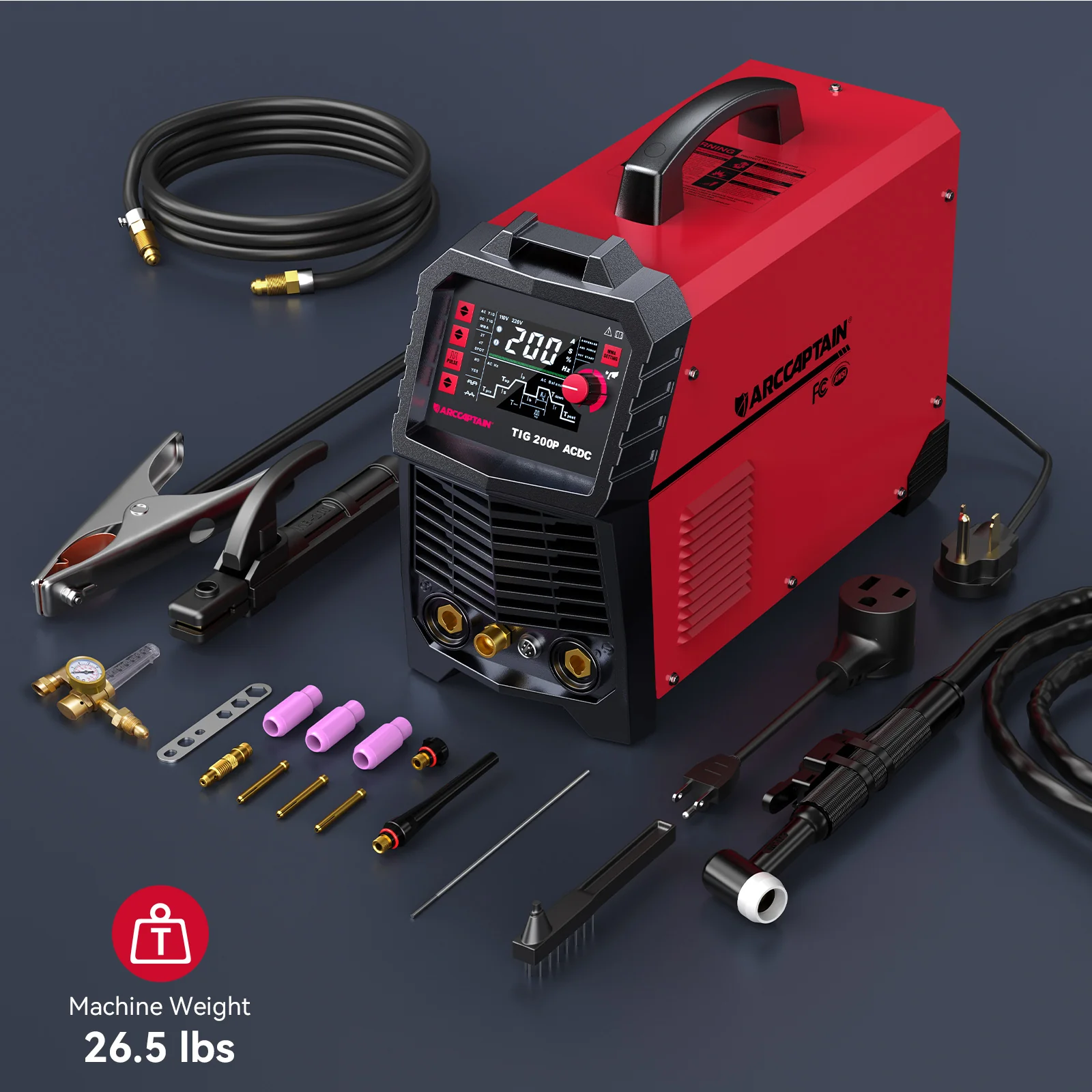

  • Lightweight & portable: Just 26.5 lbs (12 kg) for jobsite mobility

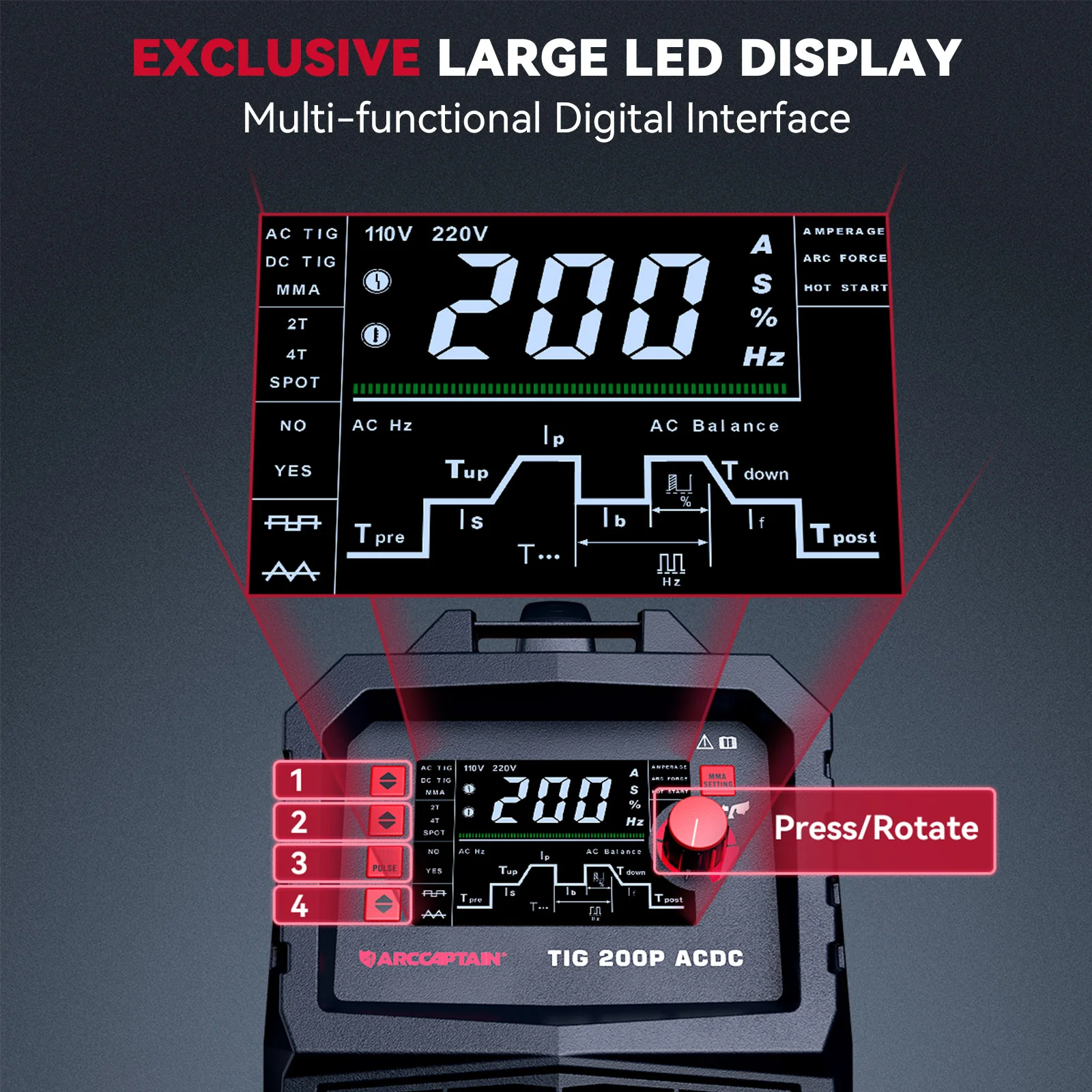

  • Large LED display with intuitive controls: Adjust pre-flow, slope timing, crater fill, and more in seconds

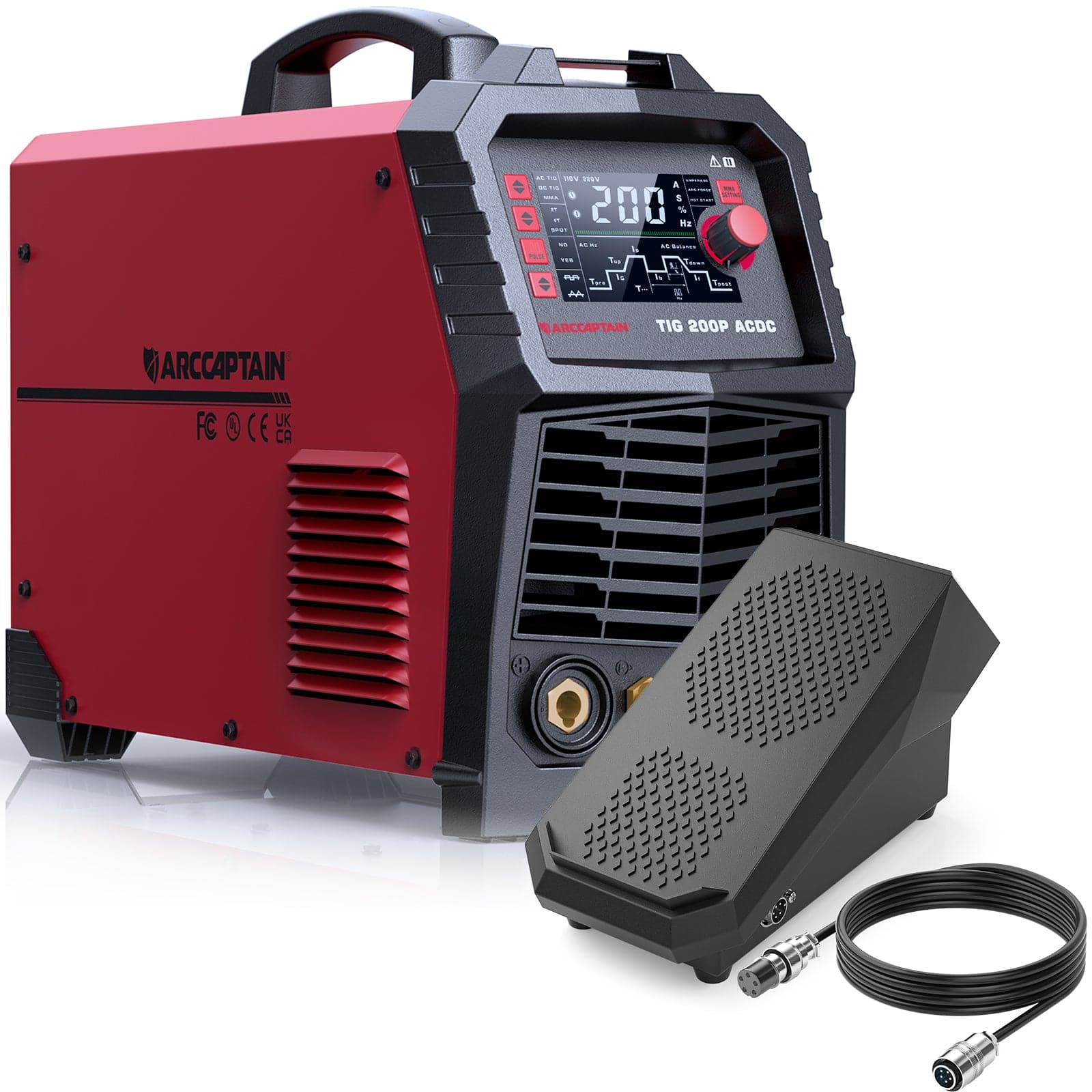

  • Flexible control options: Use the handheld torch (2T/4T/spot modes) or add a foot pedal (sold separately)

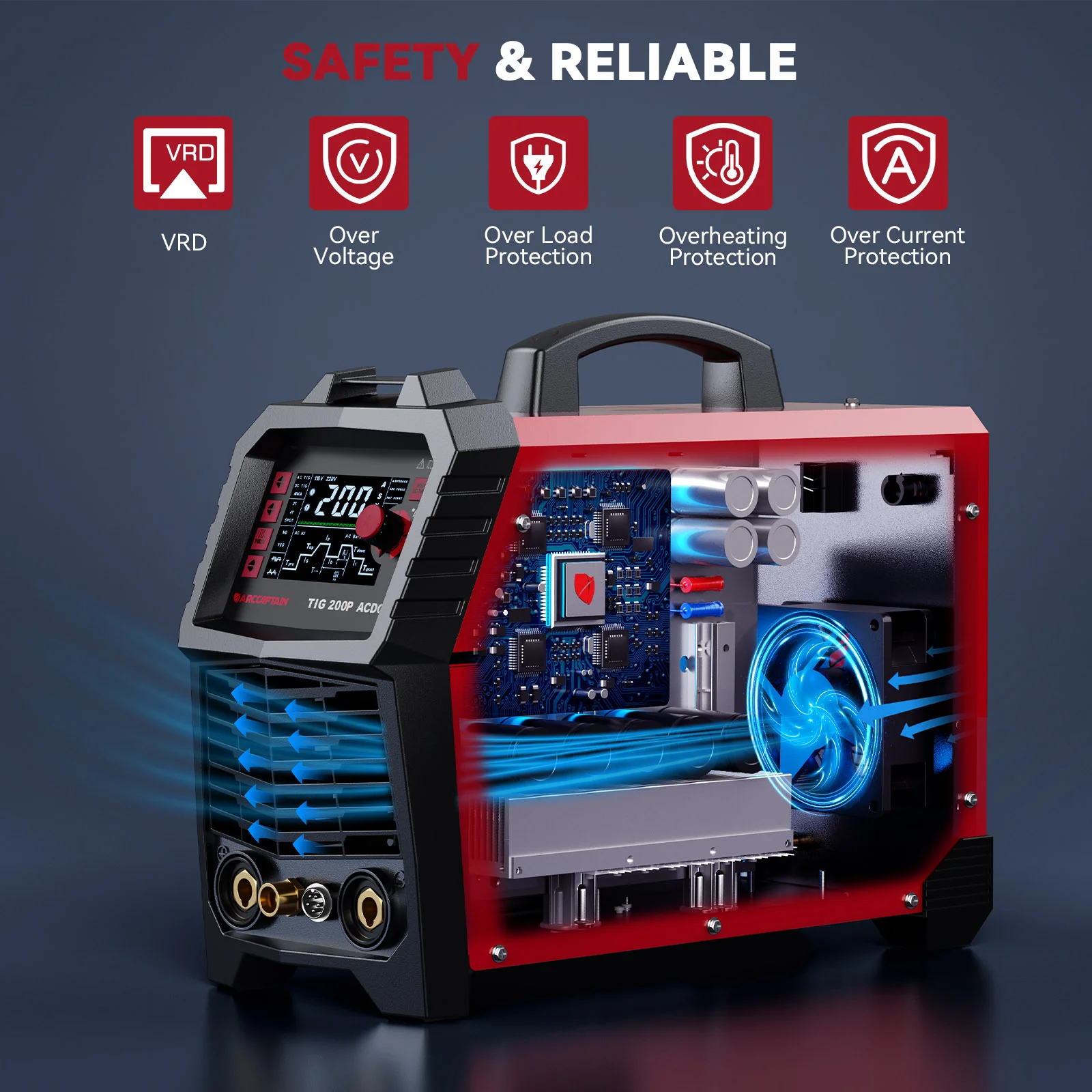

Safety You Can Trust
Auto-shutdown protection against overheating, voltage spikes, and overloads. VRD (Voltage Reduction Device) keeps you safe during electrode changes.

    Project Name

    Unit

    Value

    Power voltage

    VAC

    AC110V±15%

    AC220V±15%


    Input frequency

    Hz

    50

    Rated input current

    A

    33@TIG 35@MMA

    Capacity of power supply

    KVA

    6.0@TIG 7.5@MMA

    Output current range (TIG)

    A

    10~120(110 v)

    10~200 (220v)


    Output current range (MMA)

    A

    10~110(110v)

    10~160(220v)


    Arc force range

    A

    0~40

    Hot start current range

    A

    0~80

    No-load voltage

    V

    60

    Rated working voltage

    V

    18@TIG 26.4@MMA

    AC output frequency

    Hz

    20~250

    AC balance

    %

    20~60

    Background level

    A

    10~200

    Pulse frequency

    Hz

    0.5~200 (DC)

    0.5~25(AC)

    Pulse duty factor

    %

    5~95

    Pre-flow time

    S

    0~5

    Post-flow time

    S

    0~15

    Rising time

    S

    0~15

    Fall time

    S

    0~15

    Remote control

    -

    Yes

    Arc start mode

    -

    HF arc starter

    Efficiency (%)

    %

    80

    Duty cycle (%)

    %

    TIG: 200@25% -

    MMA: 160@25%

    Power factor

    -

    0.70

    Type of cooling

    -

    Air cooled

    Working temperature range

    °C

    -10~+40

    Storage temperature range

    °C

    -25~+55

    Protection class

    -

    IP21S

    Insulation class

    -

    B



    Select Option
    From $227.50

    Original: $649.99

    -65%
    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder—

    $649.99

    $227.50

    More Images

    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 2
    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 3
    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 4
    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 5
    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 6
    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 7
    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 8
    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 9
    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 10
    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 11

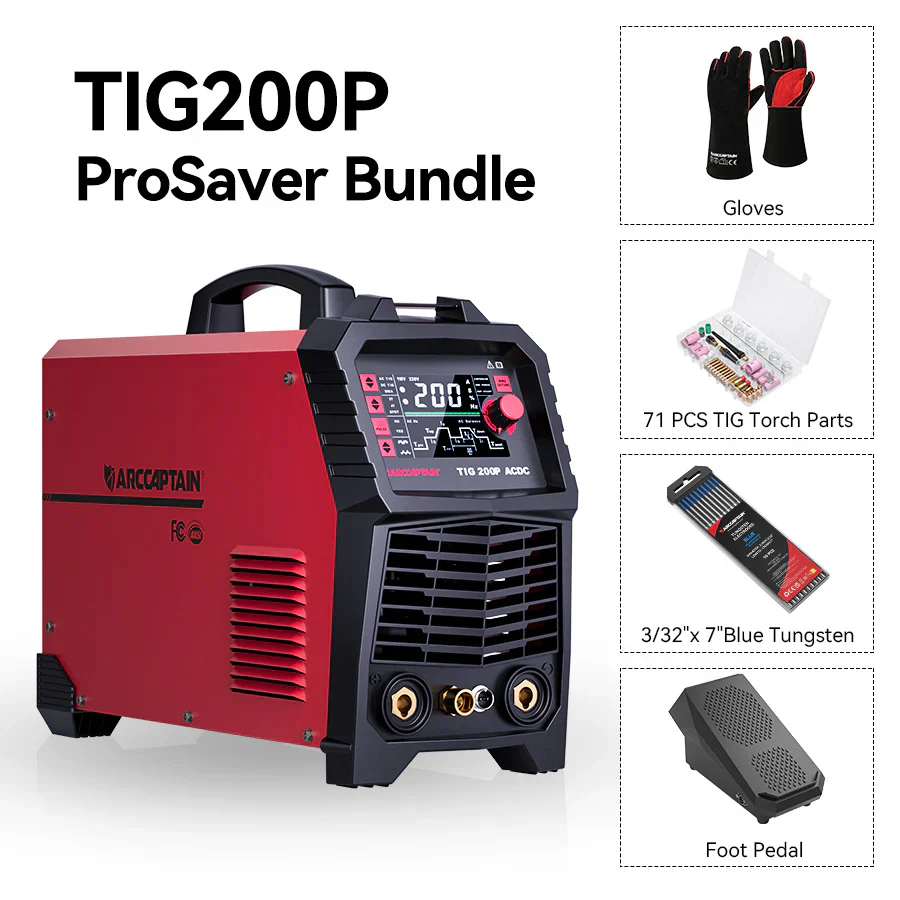

    Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder - Image 12
